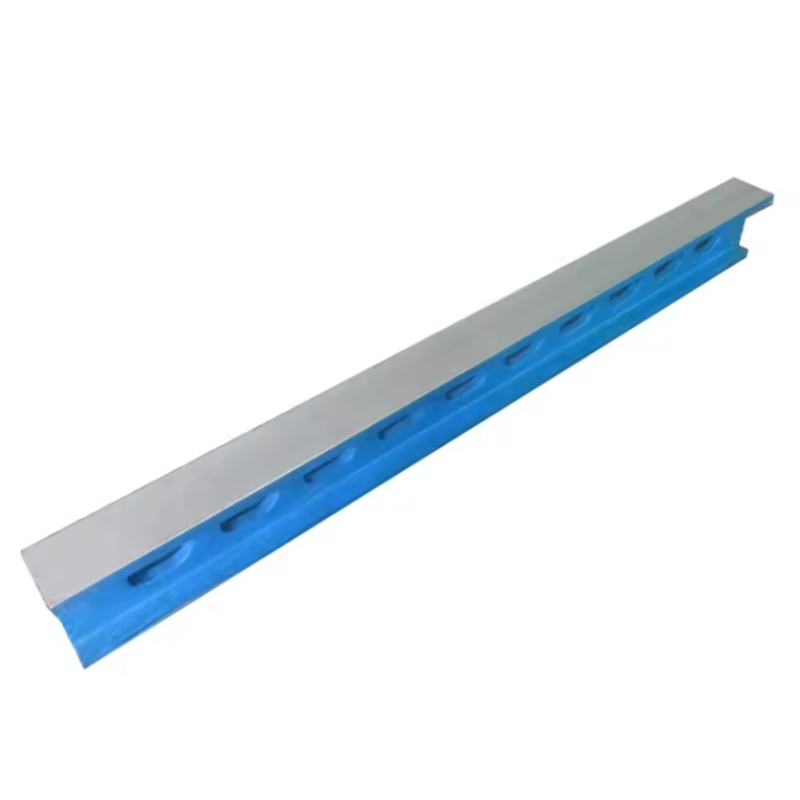

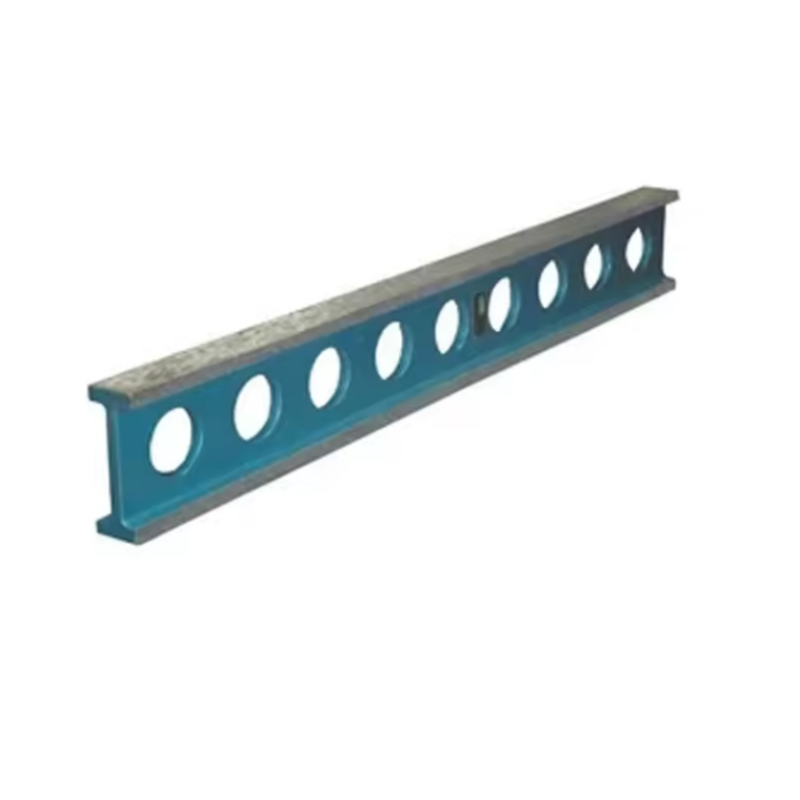

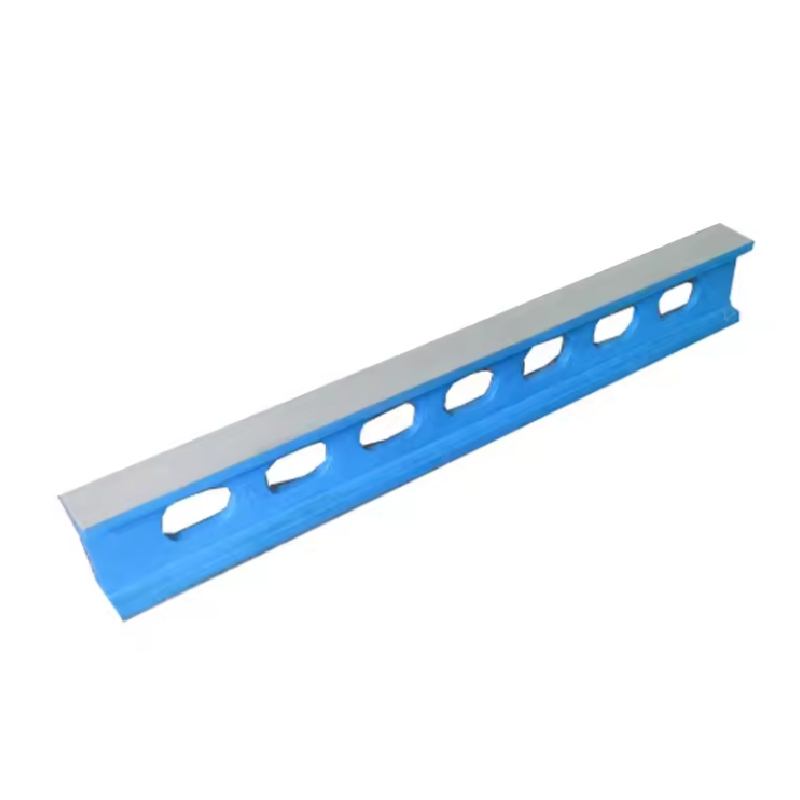

Straight Rulers
Product Parameter
Place of Origin：Hebei, China
Warranty：1 year
Customized support：OEM, ODM, OBM
Brand Name：Storan
Model Number：2010
Material：cast iron
Accuracy：customized
Operation Mode：customized
Item Weight：customized
Capacity：customized
Material：HT200-300
Specification：see attached form or customize
Surface treatment：hand-scraped or finish-milling
Foundry process：sand casting
Painting：primer painting
Surface coating：working surface covered with pickling oil
Working temperature：(20±5)℃
Precision grade：1-3
Custom design：available
Packaging：plywood box
Lead time
|
Quantity (pieces) |
1 - 1 |
> 1 |
|
Lead time (days) |
30 |
To be negotiated |
Features
* Ⅰshaped
* Made from high quality cast iron.
* Casting stress – relieved to remove internal stresses.
* Offered in three Grades of accuracies: Grades 0, 1 and 2.
* Normal packaging is plywood box, fine packaging case provided on request at extra cost.
Product Specifications
Material: HT200-300
Specification: see attached form or customize
Surface treatment: hand-scraped or finish-milling
Foundry process: sand casting
Painting: primer painting
Surface coating: working surface covered with pickling oil and non-working surface covered with antirust paint
Working temperature: (20±5)℃
Precision grade :1-3
Custom design: available
Packaging: plywood box
Product Parameter
|
No. |
Width X Length（mm) |
Straightness or Flatness of Working Surface |
Parallelism Between Both Working Surfaces |
||||
|
Precision Degree(μm) |
|||||||
|
1 |
2 |
3 |
1 |
2 |
3 |
||
|
1 |
500 × 45 |
6 |
12 |
|
9 |
18 |
|
|
2 |
750 × 50 |
8 |
15 |
|
12 |
25 |
|
|
3 |
1000 × 55 |
10 |
20 |
|
15 |
30 |
|
|
4 |
1200 × 60 |
12 |
24 |
|
18 |
36 |
|
|
5 |
1500 × 60 |
15 |
30 |
|
20 |
40 |
|
|
6 |
2000 × 80 |
20 |
40 |
80 |
27 |
54 |
|
|
7 |
2500 × 80 |
25 |
50 |
100 |
33 |
65 |
130 |
|
8 |
3000 × 100 |
|
60 |
120 |
|
78 |
156 |

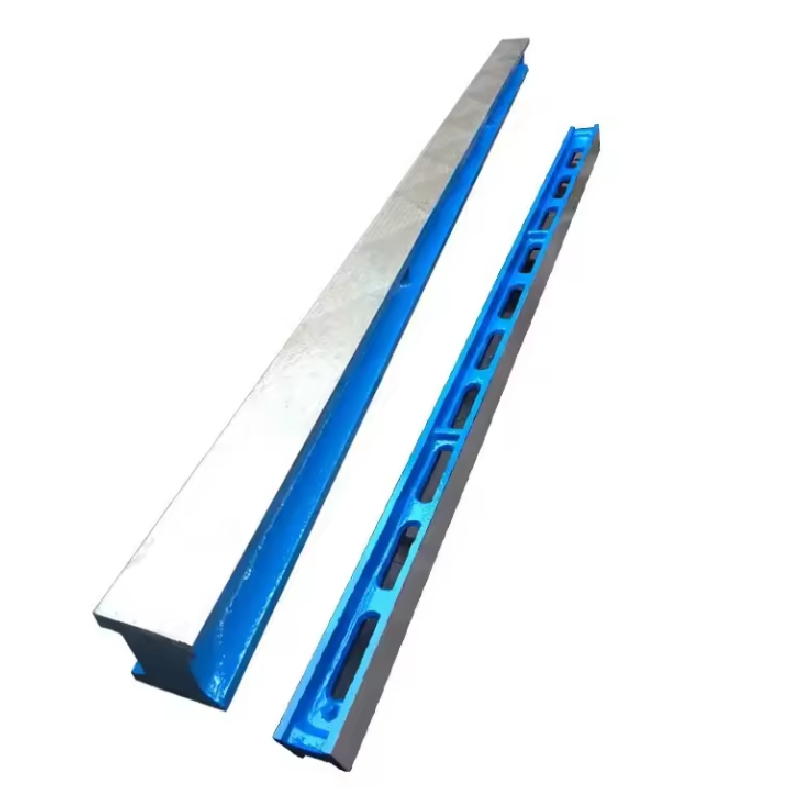

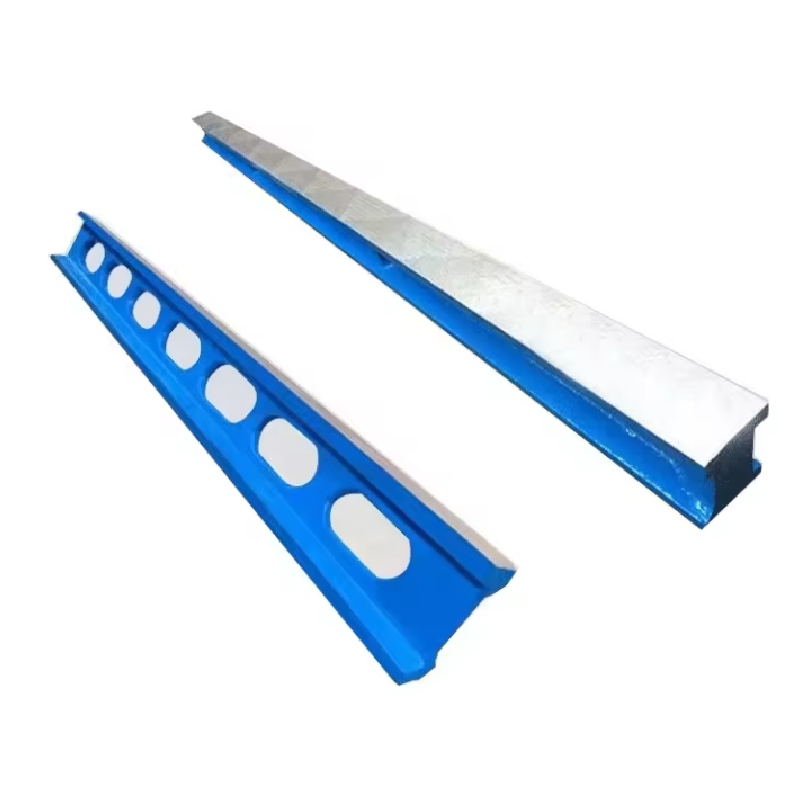

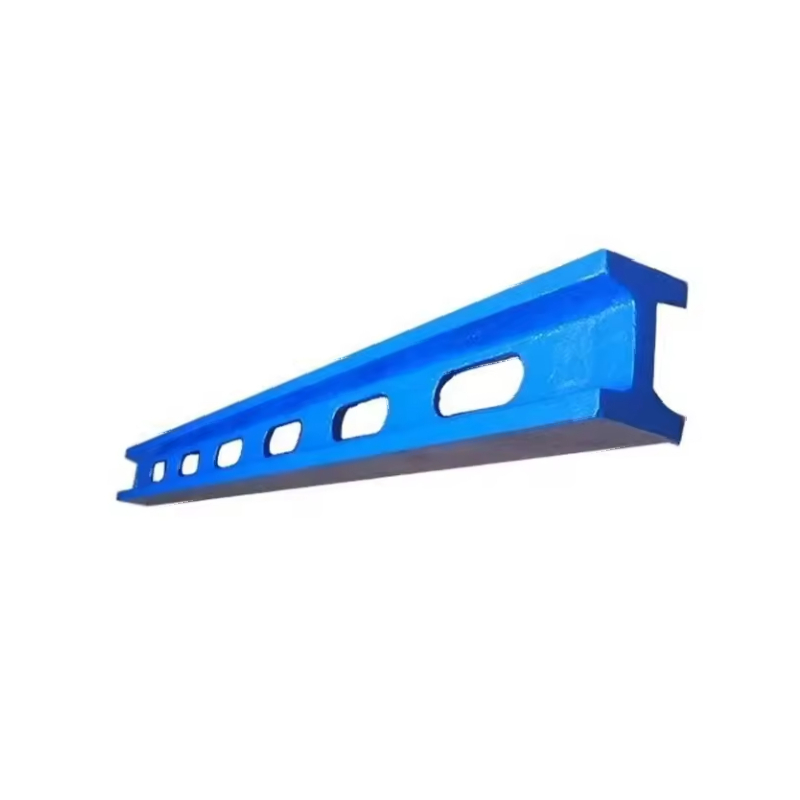

Product Detail Drawing
