Cast Iron Inspection Surface Plate
Product Parameter
Place of Origin：Hebei, China
Warranty：1 years
Customized support：OEM, ODM, OBM
Brand Name：Storan
Model Number：2011
Material：cast iron
Accuracy：customized
Operation Mode：customized
Item Weight：customized
Capacity：customized
Product name：Cast Iron Surface Plate
Material：HT200-300, QT or steel
Size：200x200-4000x8000mm or customize
Hardness of Working Surface：HB160-240
Foundry process：resin sand casting
Structure：rib (bone) structure with enough wall thickness
Painting：primer and face paint
Precision grade：0-3
Working temperature：(20±5) ℃
Packaging：plywood box
Lead time
|
Quantity (pieces) |
1 - 100 |
> 100 |
|
Lead time (days) |
30 |
To be negotiated |
Heavy Duty Steel Stand:
Heavy Duty Steel Stand are usually custom designed to maintain the precision tolerances. Leveling screws and heavy-duty casters are available on the stands. Orders should specify the exact working height: from floor to the top of the surface plate.
Product Specifications
Material: HT200-300 Specification: 200x200-4000x8000mm or customize Working Surface: flat, grid slots for location, tapped holes, T-slots Hardness of the working surface: HB160-240 Surface treatment: precisely finished by planning and hand scraping Foundry process: resin sand casting Structure: rib (bone) structure with enough wall thickness Painting: primer and face paint Surface coating: working surface covered with pickling oil and non-working surface covered with antirust paint Heat-treated: available, for stress relief Stands: available for corresponding sizes Precision grade: 0-3 Working temperature: (20±5) ℃ Packaging: plywood box
Product Parameter
|
No. |
Width X Length（mm) |
Precision Grade |
|||
|
|
|
0 |
1 |
2 |
3 |
|
|
|
Flatness (μm) |
|||
|
1 |
200X200 |
3.5 |
7 |
14 |
|
|
2 |
300X200 |
4 |
8 |
15 |
|
|
3 |
300X300 |
4 |
8 |
15 |
|
|
4 |
300X400 |
4 |
8 |
16 |
|
|
5 |
400X400 |
4.5 |
8.5 |
17 |
|
|
6 |
400X500 |
4.5 |
9 |
18 |
|
|
7 |
400X600 |
5 |
10 |
19 |
|
|
8 |
500X500 |
5 |
10 |
19 |
|
|
9 |
500X600 |
5 |
10 |
19 |
|
|
10 |
500X800 |
5.5 |
11 |
21 |
|
|
11 |
600X800 |
5.5 |
11 |
22 |
|
|
12 |
600X900 |
6 |
11.5 |
23 |
|
|
13 |
1000X750 |
|
12.5 |
25 |
50 |
|
14 |
1000X1000 |
|
13.5 |
27 |
54 |
|
15 |
1000X1200 |
|
14 |
29 |
58 |
|
16 |
1000X1500 |
|
16 |
32 |
63 |
|
17 |
1000X2000 |
|
18.5 |
37 |
74 |
|
18 |
1500X2000 |
|
20 |
40 |
80 |
|
19 |
1500X2500 |
|
22.5 |
45 |
90 |
|
20 |
1500X3000 |
|
25 |
50 |
100 |
|
21 |
2000X2000 |
|
22 |
44 |
88 |
|
22 |
2000X3000 |
|
27 |
53 |
106 |
|
23 |
2000X4000 |
|
32 |
64 |
127 |
|
24 |
2000X5000 |
|
37 |
75 |
150 |
|
25 |
2000X6000 |
|
43 |
86 |
172 |
|
26 |
2000X7000 |
|
49 |
97 |
194 |
|
27 |
2000X8000 |
|
54.5 |
109 |
218 |
|
28 |
2500X3000 |
|
28.5 |
57 |
114 |
|
29 |
2500X4000 |
|
33 |
67 |
133 |
|
30 |
2500X5000 |
|
39 |
77 |
154 |
|
31 |
2500X6000 |
|
|
88 |
176 |
|
32 |
2500X7000 |
|
|
99 |
198 |
|
33 |
2500X8000 |
|
|
110 |
221 |
|
34 |
3000X3000 |
|
|
61 |
122 |
|
35 |
3000X4000 |
|
|
70 |
140 |
|
36 |
3000X5000 |
|
|
80 |
160 |
|
37 |
3000X6000 |
|
|
90.5 |
181 |
|
38 |
3000X7000 |
|
|
101 |
203 |
|
39 |
3000X8000 |
|
|
112.5 |
225 |
|
40 |
4000X4000 |
|
|
78 |
156 |
|
41 |
4000X5000 |
|
|
87 |
174 |
|
42 |
4000X6000 |
|
|
96.5 |
193 |
|
43 |
4000X7000 |
|
|
107 |
213.5 |
|
44 |
4000X8000 |
|
|
117 |
235 |

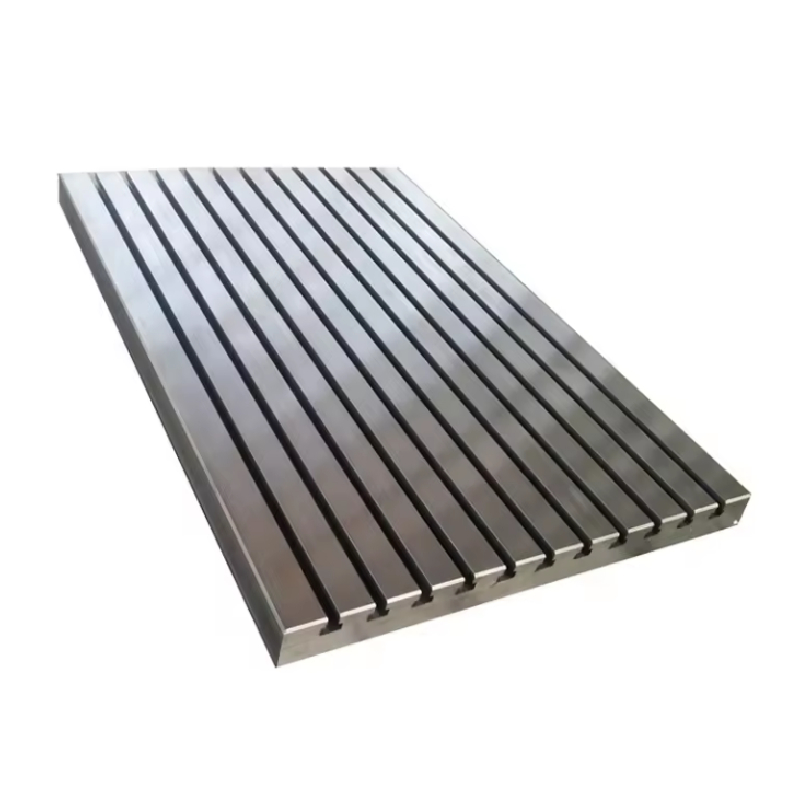

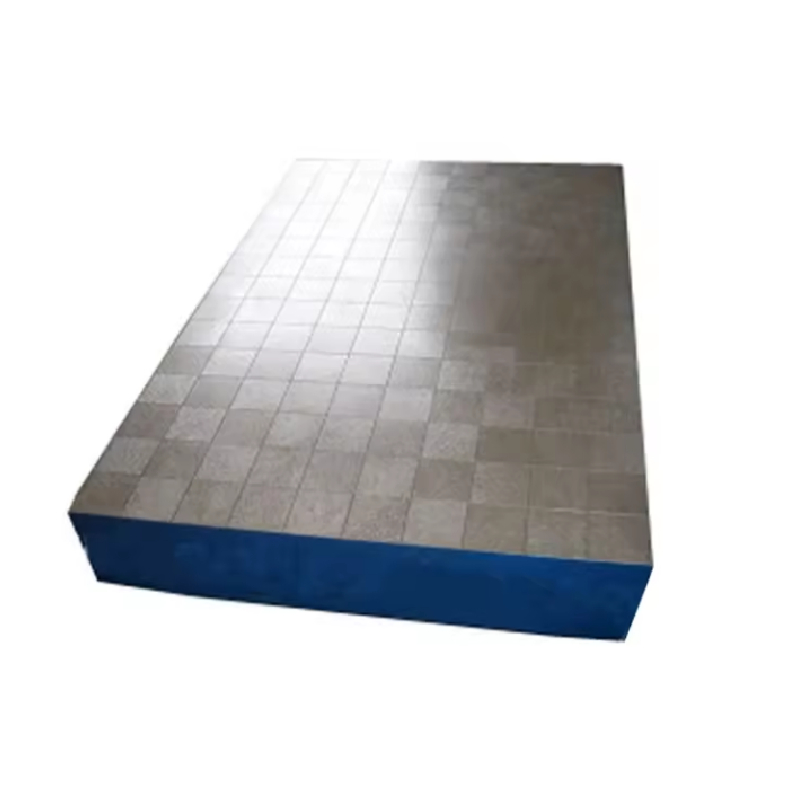

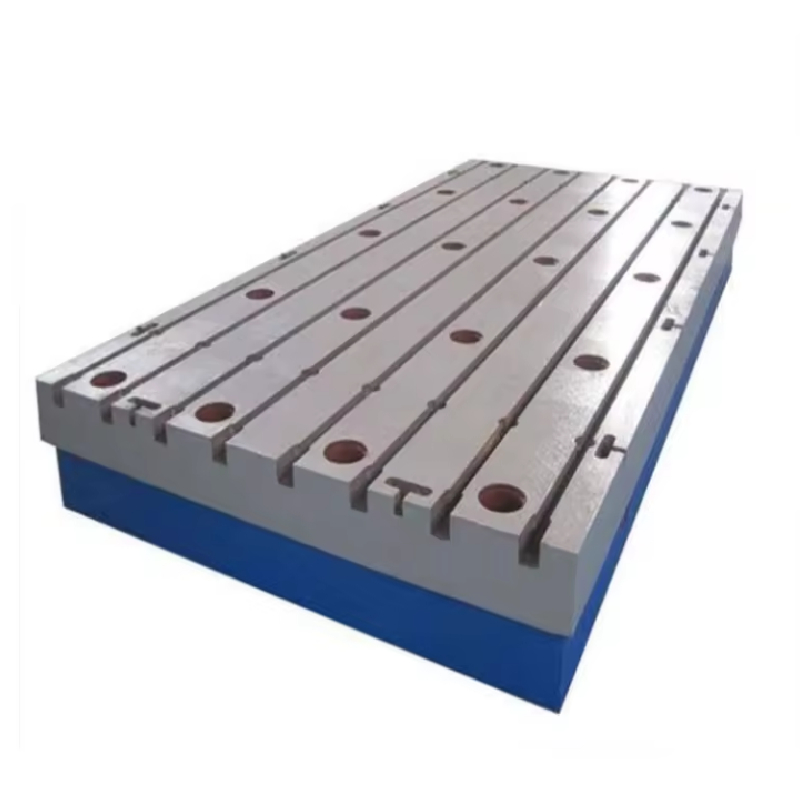

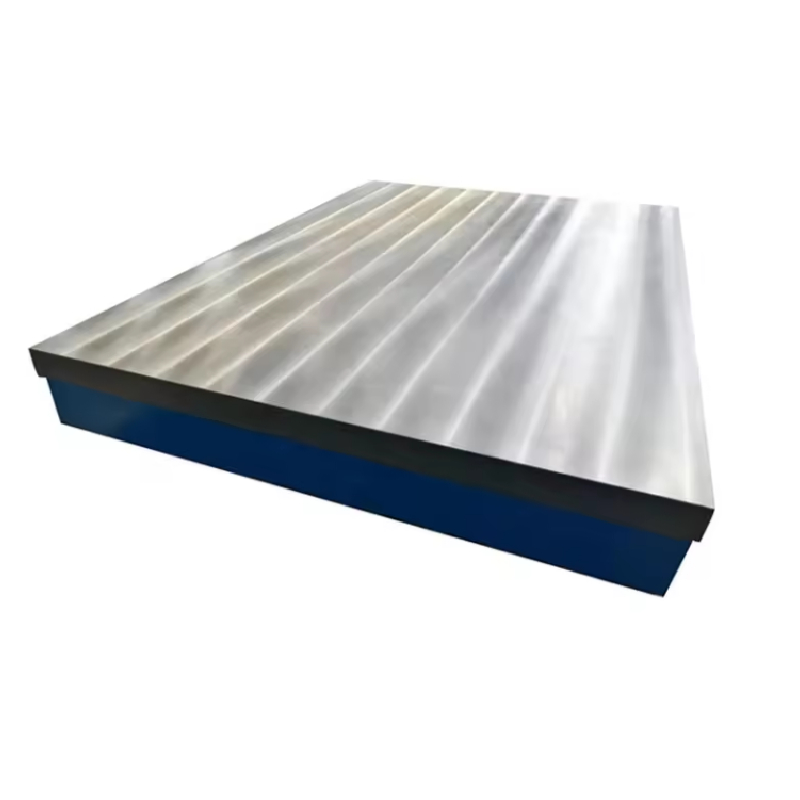

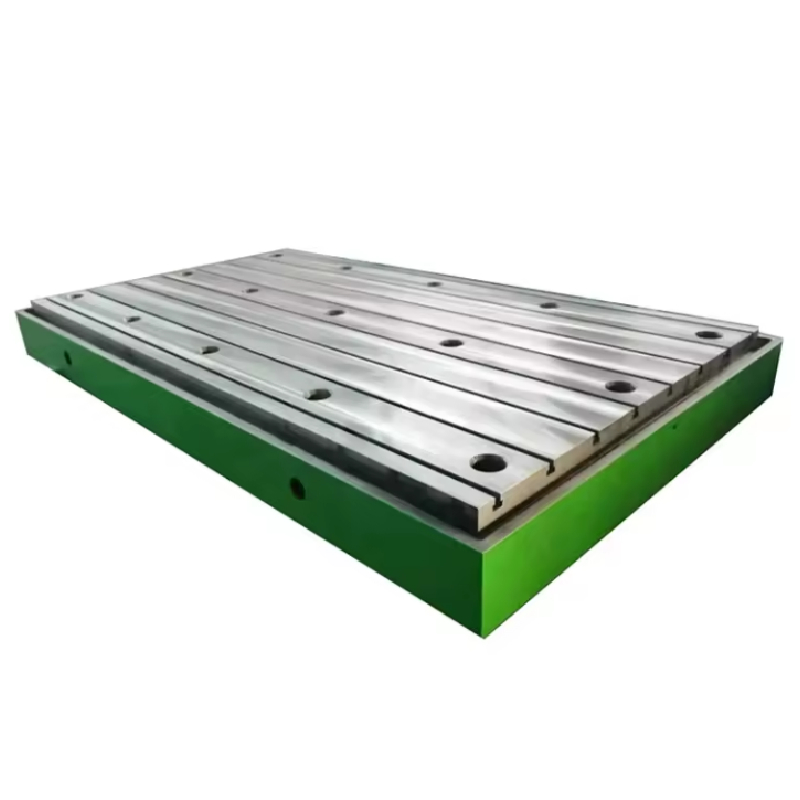

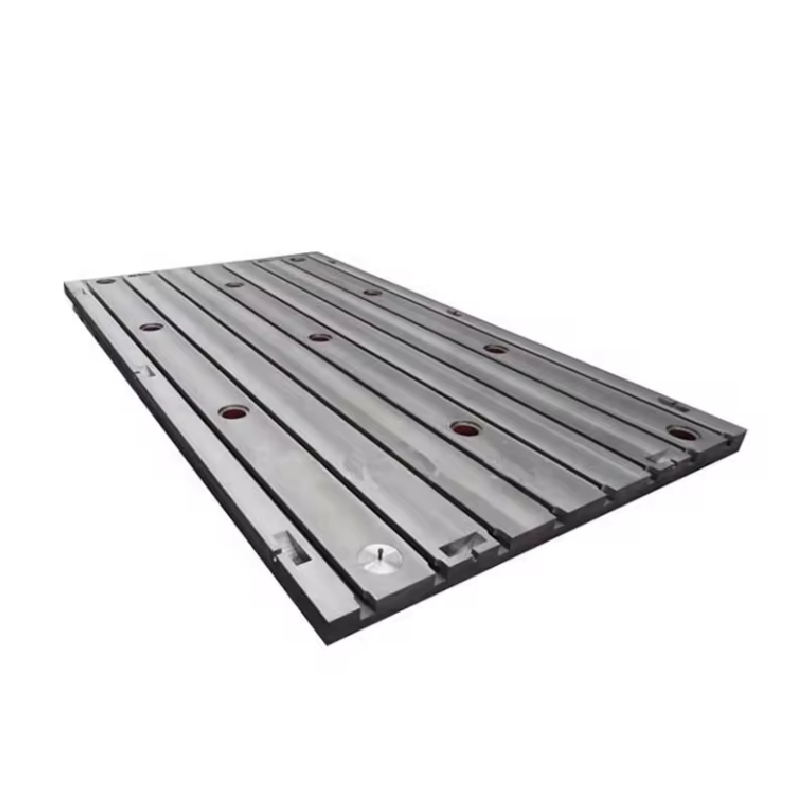

Product Detail Drawing
