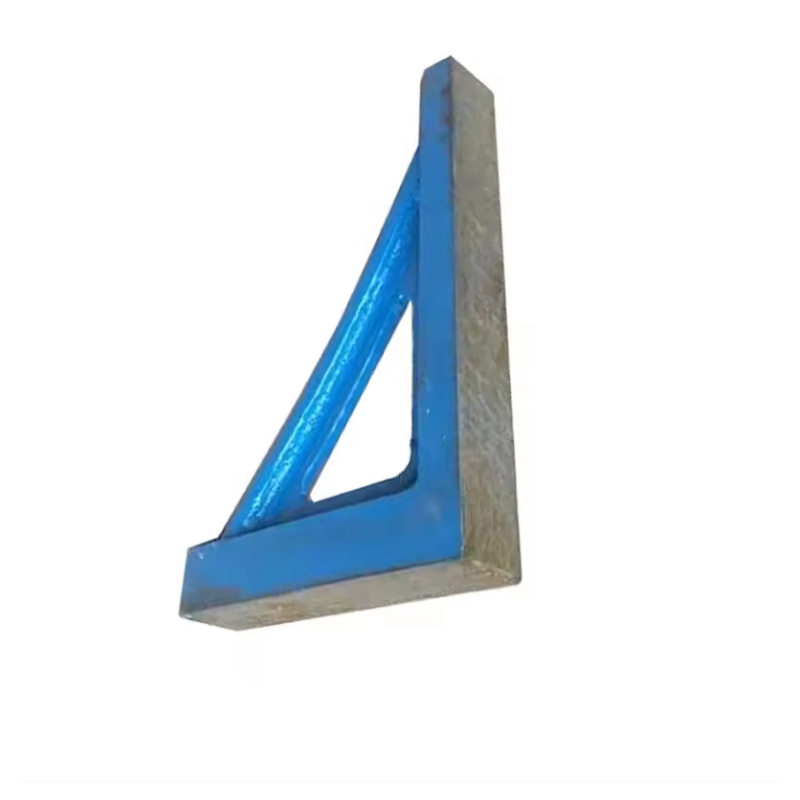

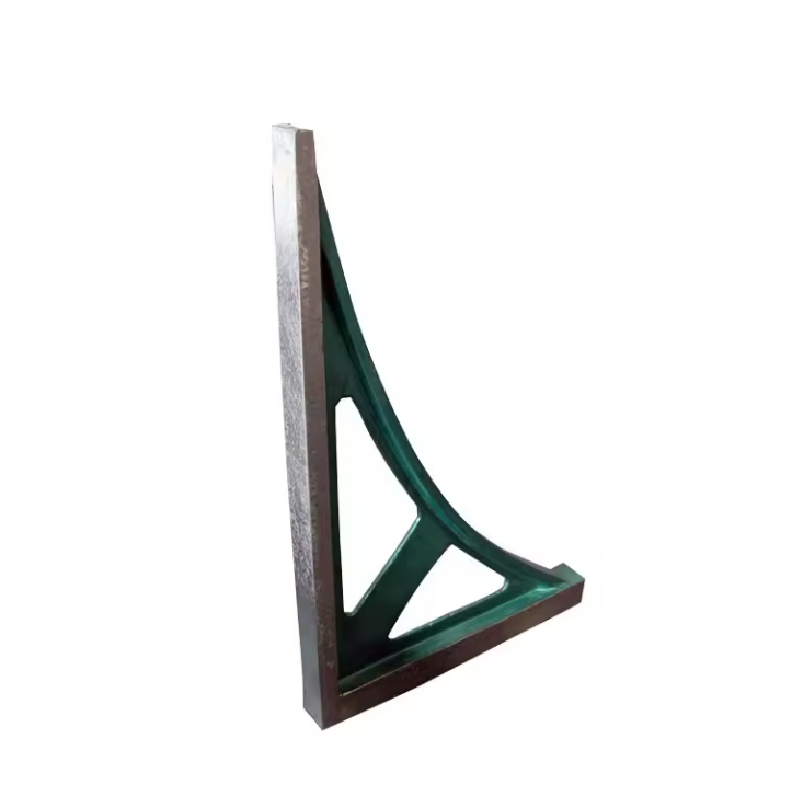

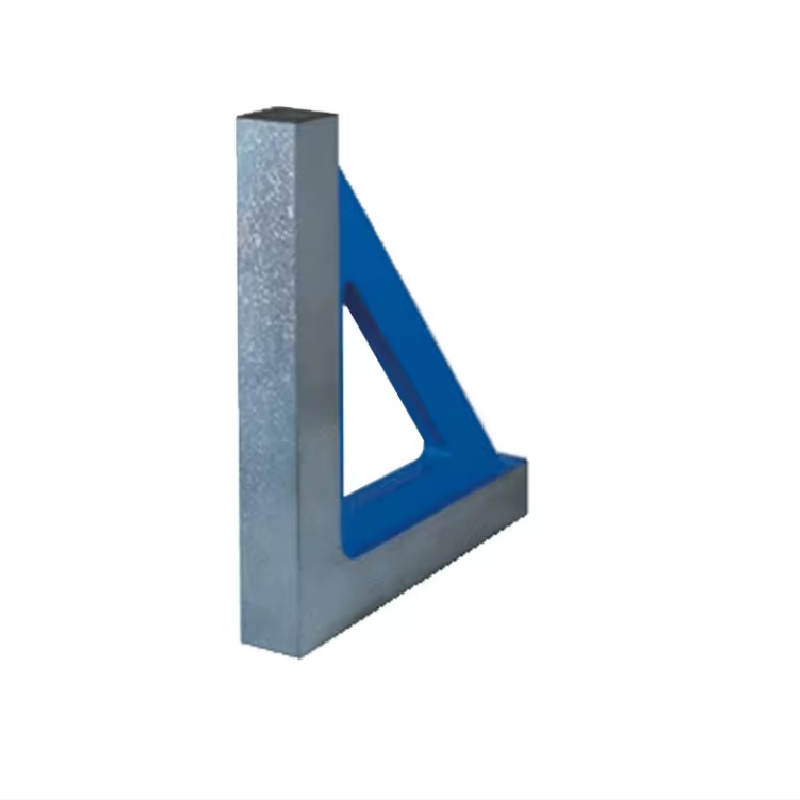

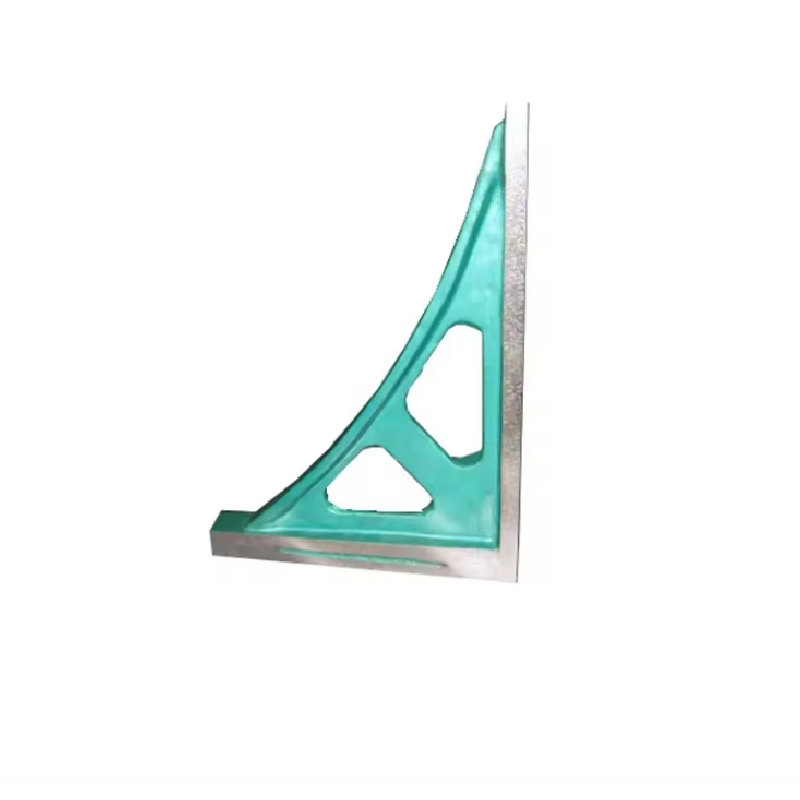

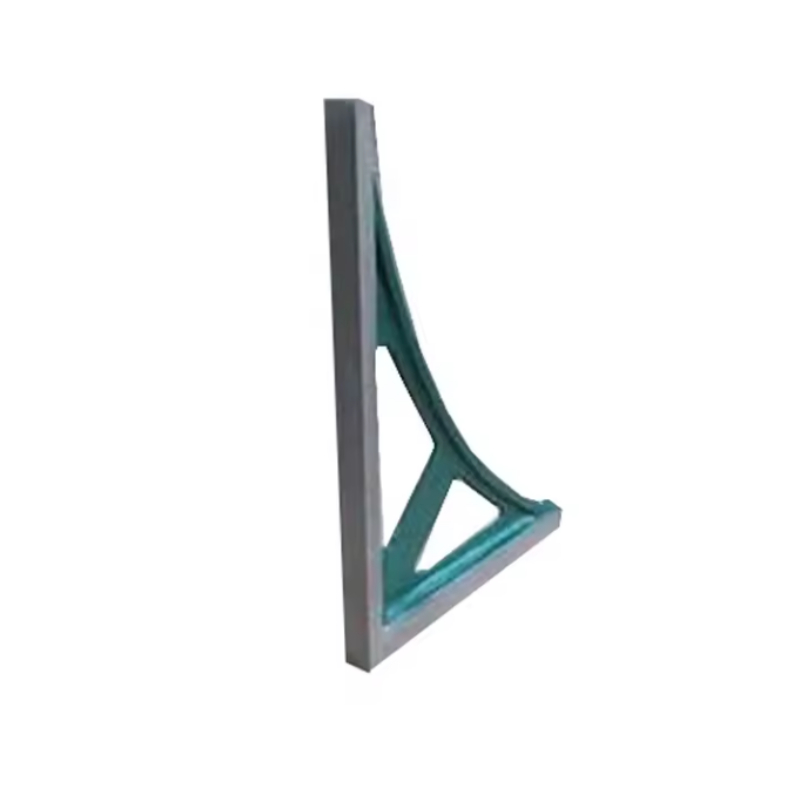

Metal Right Angle Ruler
Product Parameter
Place of Origin：Hebei, China
Warranty：1 year
Customized support：OEM, ODM, OBM
Brand Name：Storan
Model Number：2013
Material：cast iron
Accuracy：customized
Operation Mode：customized
Item Weight：customized
Capacity：customized
Material：HT200-300
Specification：see attached form or customize
Surface treatment：hand-scraped or finish-milling
Foundry process：foundry process sand casting
Painting：working surface covered with pickling oil
Surface coating：pickling oil
Working temperature：(20±5)℃
Precision grade：1-2
Packaging：plywood box
Custom design：Available
Lead time
|
Quantity (pieces) |
1 - 1 |
> 1 |
|
Lead time (days) |
30 |
To be negotiated |
Product Specifications
Material: HT200-250
Specification: see attached form or customize
Surface treatment: hand-scraped or finish-milling
Foundry process: sand casting
Painting: primer painting
Surface coating: working surface covered with pickling oil and non-working surface covered with antirust paint
Working temperature: (20±5)℃
Precision grade: 1-2
Packaging: plywood box
Product Parameter
|
No. |
Size（mm) |
Verticality of measuring surface towards datum |
Flatness of measuring surface |
Flatness of datum |
|||
|
Precision Degree(μm) |
|||||||
|
1 |
2 |
1 |
2 |
1 |
2 |
||
|
1 |
300×200 |
11 |
22 |
4 |
7 |
6 |
11 |
|
2 |
400×300 |
12 |
25 |
4 |
8 |
7 |
12 |
|
3 |
500×350 |
15 |
30 |
5 |
10 |
8 |
15 |
|
4 |
600×400 |
18 |
35 |
6 |
12 |
9 |
18 |
|
5 |
800×500 |
20 |
40 |
7 |
14 |
10 |
20 |
|
6 |
1000×630 |
25 |
50 |
8 |
16 |
12 |
25 |
|
7 |
1000×750 |
25 |
50 |
8 |
16 |
12 |
25 |
Product Detail Drawing
