Filter DN50

Y type filter is a filter device for pipeline system of conveying medium, usually installed in the pressure relief valve, pressure relief valve, water level valve or other equipment inlet end, used to remove impurities in the medium, to protect the normal use of valves and equipment. Applicable to: water, steam, oil and other media, the use of temperature generally in -40 DEG C ~ 300 DEG C. (Note: the specific use of temperature to filter design temperature.) Y type filter is mainly: the main body, filter, central cover, central plug, central fastener and so on. The filter design and manufacturing reference standard: SH/T3411-1999, inspection reference standard: GB/T14382-2008.

CONTACT NOW PDF Download

Details

Tags

Product Description

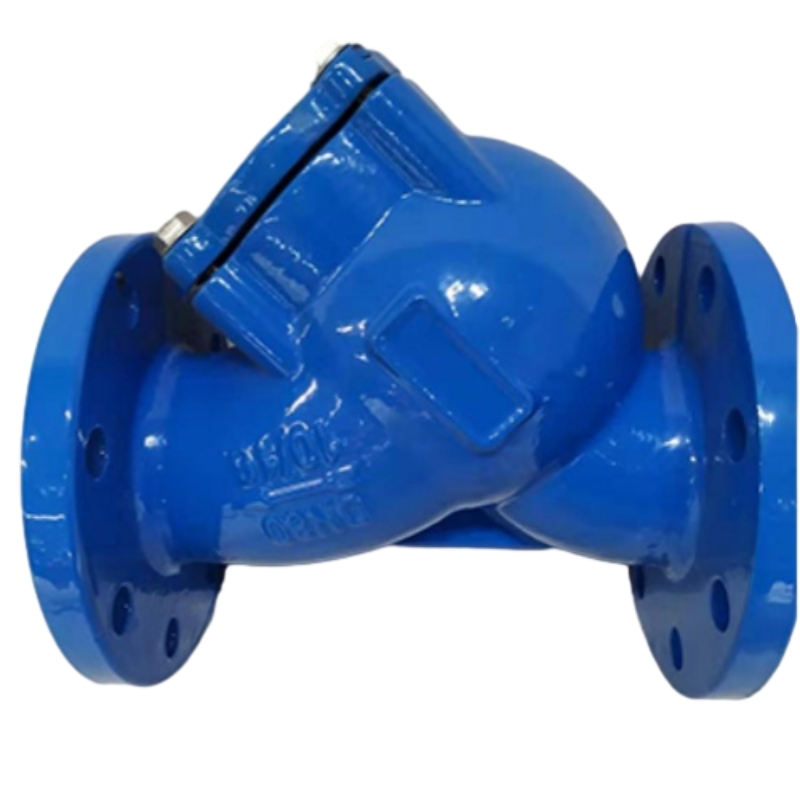

Y-type filter belongs to pipeline coarse filter, which can be used for liquid, gas or other media large particles filtration, installed in the pipeline to remove large solid impurities in the fluid, so that the machinery and equipment (including compressors, pumps, etc.), instrumentation can work and operate normally to achieve the stabilization of the process, to safeguard the role of safe production.

Product Parameter

Nominal diameter (DN)		15 1/2''	20 3/4''	25 1''	32 1-1/4''	40 1-1/2''	50 2''	65 2-1/2''	80 3''	100 4''	125 5''
Overall dimensions	L	165 (65)	150 (79)	160 (90)	180 (105)	195 (118)	215 (218)	250 (165)	285 (190)	305	345
Overall dimensions	H	60(44)	70 (53)	70 (65)	75 (70)	90 (78)	105 (80)	150 (80)	175 (120)	200	205
Nominal diameter (DN)		150 6''	200 8''	250 10''	300 12''	350 14''	400 16''	450 18''	500 20''	600 24''
Overall dimension	L	385	487	545	605	660	757	850	895	1070
Overall dimension	H	260	300	380	410	480	540	580	645	780

Note: The data in this dimension table is applicable to Y-type filters of 0.25~2.5MPa and 150LB pressure rating of our factory. The data in parentheses are the filters with threaded connection .

Nominal diameter (DN)		15 1/2''	20 3/4''	25 1''	32 1-1/4''	40 1-1/2''	50 2''	65 2-1/2''
Overall dimensions	L	147	190	200	217	245	279	323
Overall dimensions	H	80	110	110	115	130	145	160
Nominal diameter (DN)		80 3''	100 4''	125 5''	150 6''	200 8''	250 10''
Overall dimensions	L	357	455	495	520	640	700
Overall dimensions	H	210	270	288	320	395	390

Note: The data in this dimension table is applicable to Y-type filters of 6.3MPa and 600LB pressure ratings in our factory.

Product Detail Drawing

Product Advantages

Nominal diameter (DN)	DN150-DN600（1/2”-24”）	connection method	Flanges, butt welds, socket welds, threads, clamps
Shell material	Carbon steel, stainless steel, etc.	Flange Pressure	0.25-6.3MPa(150-600LB)
Filter material	Stainless steel, etc.	Flange sealing surface	FF、RF、M、FM、RJ、T、G
Filtration accuracy	10 mesh-500 mesh	Gasket Material	PTFE, metal-wound, Buna-N, etc.

Note: Can be customized according to the specifications, models and samples provided by the user!

FAQ

Q : How long is your delivery time?
A : Generally it is 15-30 days. If the goods are in stock 5 days or if the material is not at stock it requires 10 days above, it is according to quantity.

Q : Do you provide samples ? is it free or extra ?
A : Yes, we could offer the sample for free charge but do not pay the cost of freight.

Q : What is your terms of payment ?
A : Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance before shippment.
