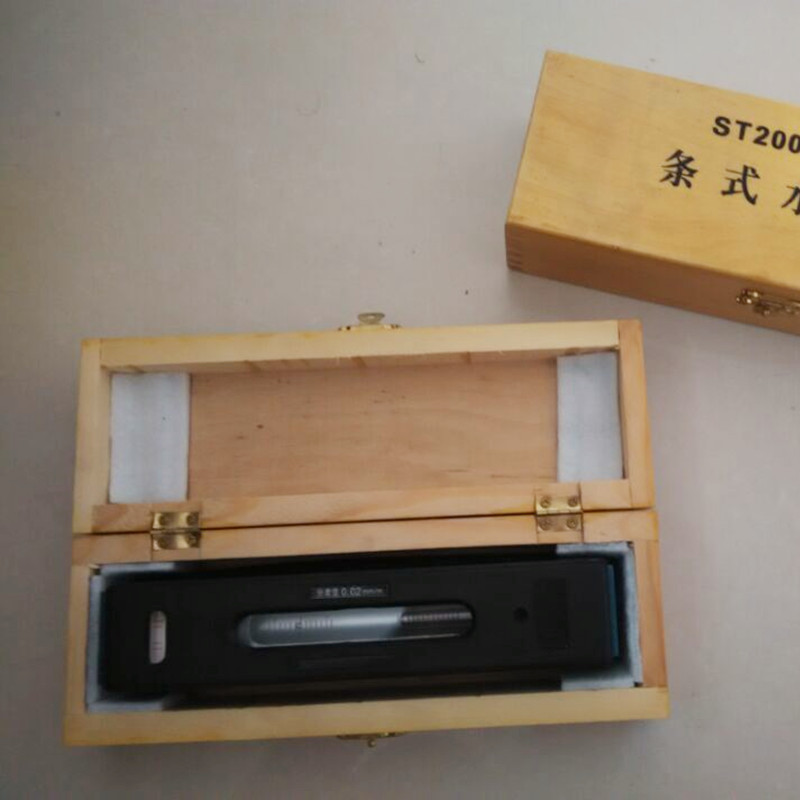

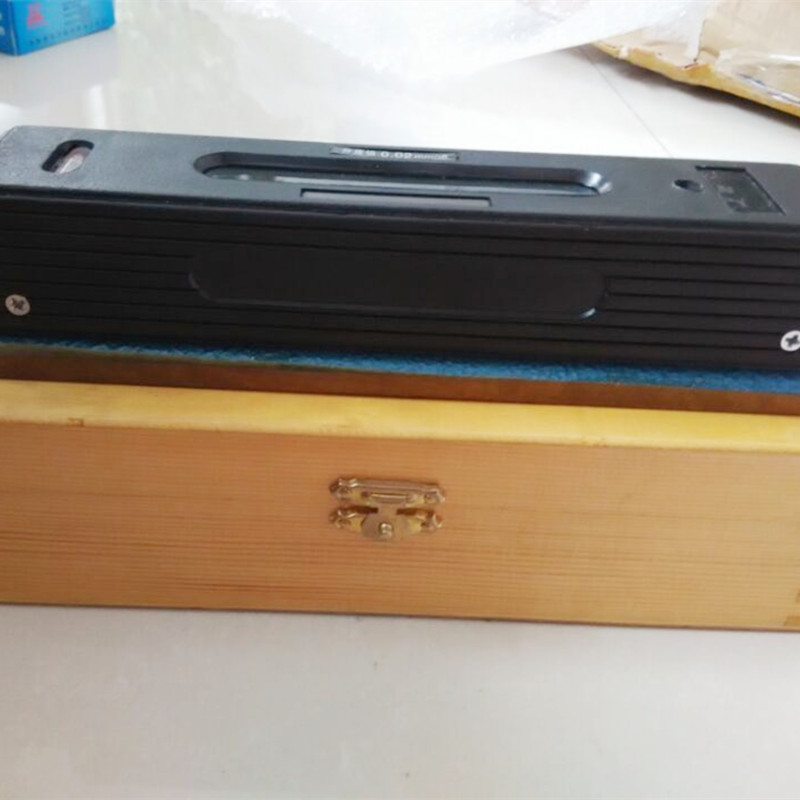

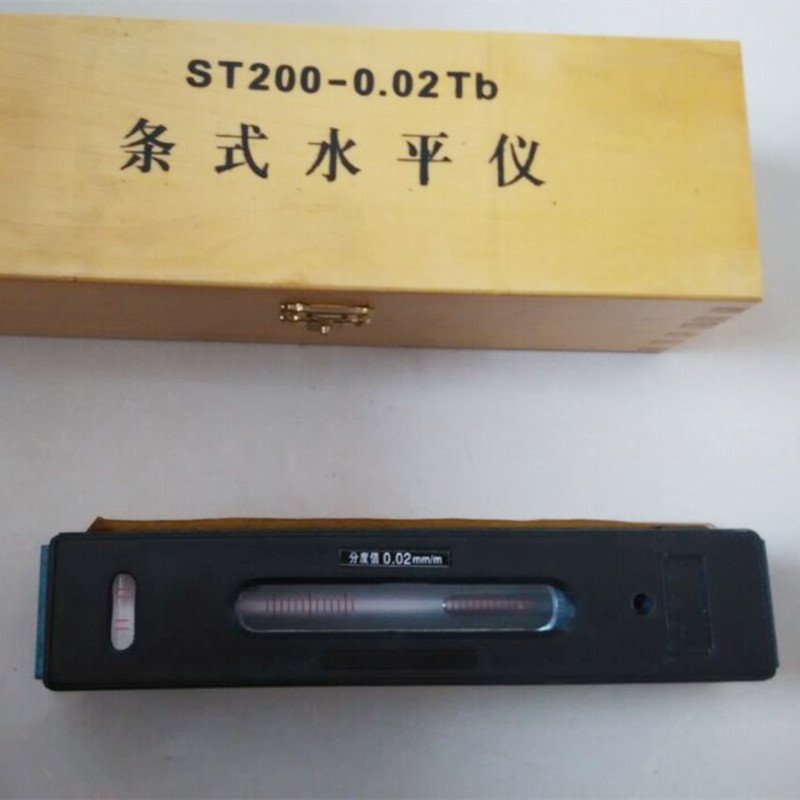

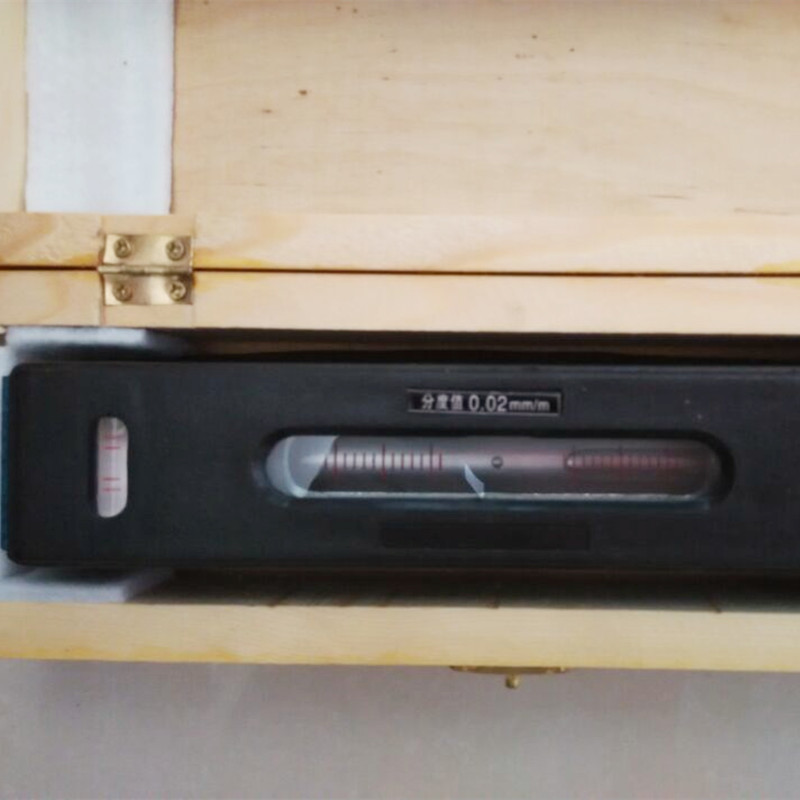

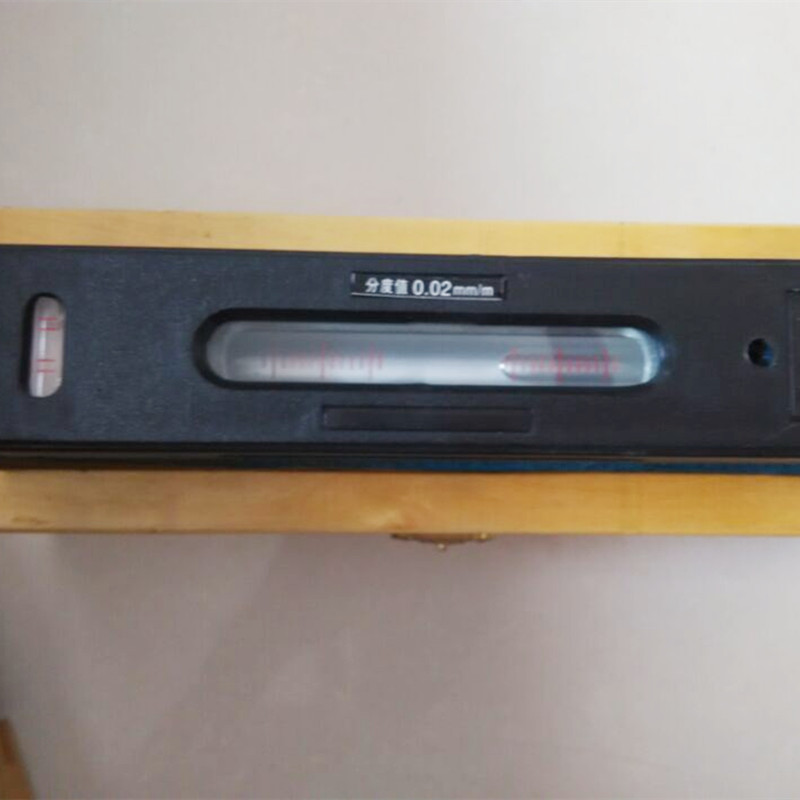

Bar Level
Product Description
- - Adjustable main vial 0.0002"/10"
- - V-grooved base.
- - With cross test vial.
- - Robust cast iron body.
- - Compared to regular master precision levels, this level is designed and produced in a more sophisticated environment.
- Product points and applications of bar level:Precautions for using a bar level:
- 1.Before measuring with a bar level, the measuring surface should be carefully cleaned and wiped dry to check for defects such as scratches, rust, and burrs.
- 2.Before measuring with a bar level, check if the zero position is correct. If not accurate, the adjustable level should be adjusted, and the fixed level should be repaired.
- 3.When measuring with a bar level, the influence of temperature should be avoided. The liquid inside the level has a significant impact on temperature changes. Therefore, attention should be paid to the influence of hand heat, direct sunlight, and bad breath on the level.
- 4.In the use of a bar level, reading should be done at the position of the vertical level to reduce the impact of parallax on the measurement results.
-
Product Parameter
- Bar level gauge m Bar level gauge specification mm: accuracy: 0.02mm/m.
|
product name |
specifications |
notes |
|
spirit levels |
100*0.05mm |
There is a V-shaped groove |
|
spirit levels |
150*0.02mm |
There is a V-shaped groove |
|
spirit levels |
200*0.02mm |
There is a V-shaped groove |
|
spirit levels |
250*0.02mm |
There is a V-shaped groove |
|
spirit levels |
300*0.02mm |
There is a V-shaped groove |
