Y Type Strainer

The Y-type filter is mainly composed of a connecting pipe, a main pipe, a filter screen, a flange, a flange cover and a fastener. When the liquid enters the filter basket through the main pipe, the solid impurity particles are blocked in the filter blue, and the clean fluid passes through the filter basket and is discharged from the filter outlet.

CONTACT NOW PDF Download

Details

Tags

Product Description

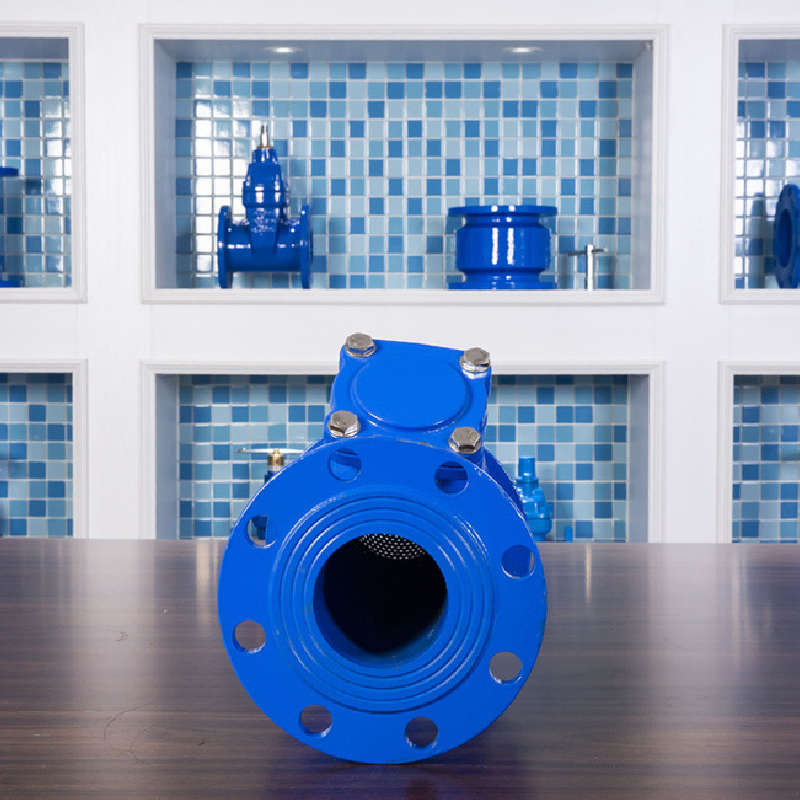

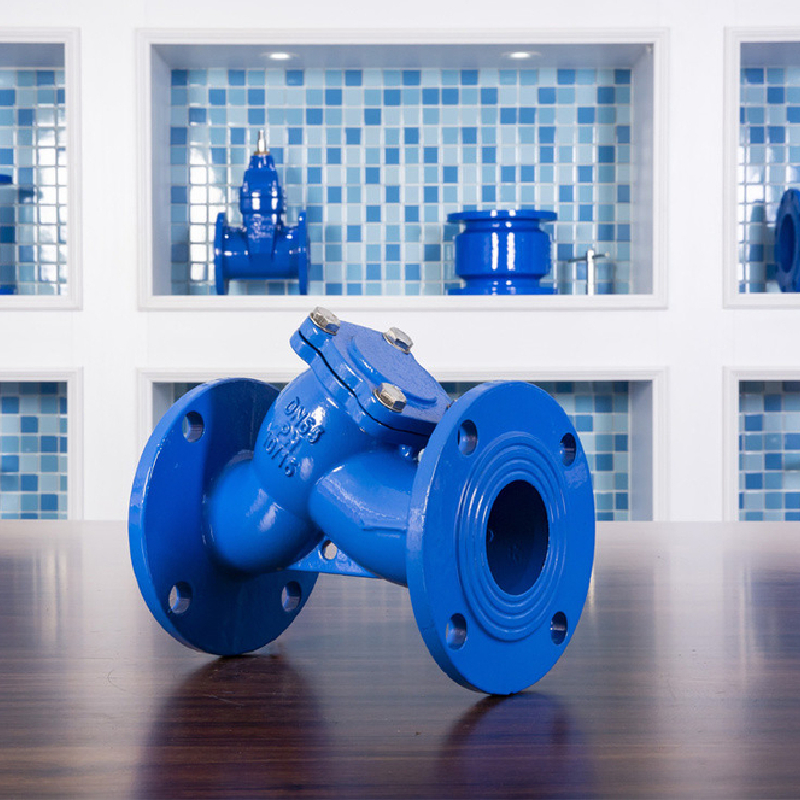

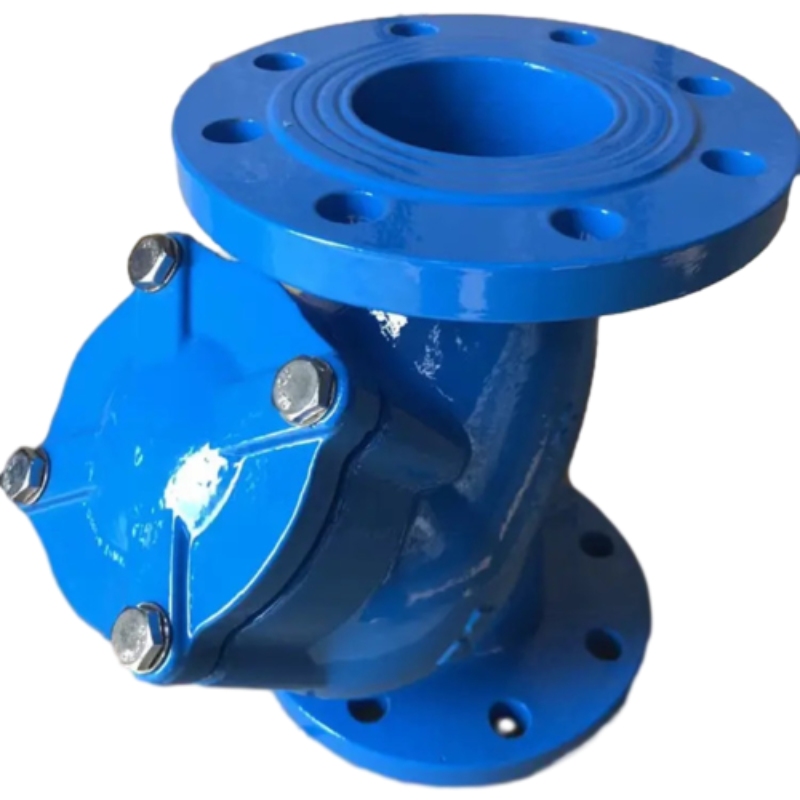

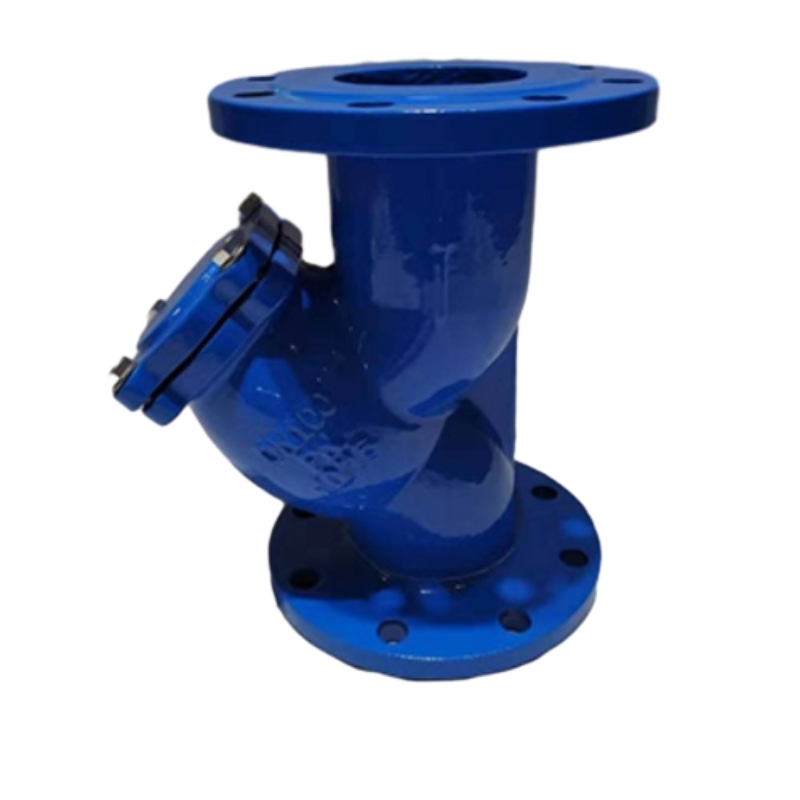

Type:	Ductile Iron Y Strainer	Port Size:	DN150
Material:	QT450	Media:	Water
Work Temperature:	-5°c ~ 85°c
High Light:	Cast Iron flanged y type strainer DN150 flanged y type strainer PN10 Y Strainer Valves

The structure of the Y-type filter has low resistance and convenient sewage discharge.

The reason why the filter screen is made into the shape of a cylindrical filter basket is to increase its strength, which is stronger than a single-layer screen, and the flange cover at the lower end of the y-shaped interface can be unscrewed to periodically remove the particles deposited in the filter basket.

The Y-type filter has the characteristics of advanced structure, small resistance and convenient sewage discharge. The suitable medium of Y-type filter can be water, oil and gas. Generally, the water network is 18-30 mesh, the ventilation network is 10-100 mesh, and the oil-passing network is 100-480 mesh. Basket filter is mainly composed of connecting pipe, main pipe, filter blue, flange, flange cover and fasteners. When the liquid enters the filter blue through the main pipe, the solid impurity particles are blocked in the filter blue, and the clean fluid passes through the filter blue and is discharged from the filter outlet.

Product Advantages

1.Nice modeling,a pressure testing hole is preset on the body.

2.Convenient and quick use.It is possible,according to the user's requirement,to change the screwed plug on the body into a ball valve and let its outlet connected to sewage pipe,this can make it done to dredge sewage with pressure while not to remove the bonnet.

3.Filtering screens of different filtering accuracies can be provided according to the user's requirement,making the filtering screen cleaned more conveniently.

4.The fluid channel is designed scientifically and reasonably,smaller flowing resistance and greater flow.The total area of the mesh comes as 3-4times that of DN.

5.The telescopic type makes installation and removal more convenient.

Product Parameter

Y-type filter(full bore)	flange thickness	flange outer circle	structure lenght	waterline height	waterline diameter	Height	screen diameter	filter lenght	filter aperture	center distance of filter
DN50	17	160	125	1.5	100	185	48	85	2	4
DN65	17	180	145	1.5	118	210	60	95	2	4
DN80	17	190	160	2	132	242	68	116	2	4
DN100	17	215	180	2	154	265	82	137	2	4
DN125		240	210	2	172
DN150		280	240	2	217		113	165	3	5
DN200	20	335	295	2	262
DN250	24			2.5	307

Y-type filter(reduced diameter)	flange thickness	flange outer circle	structure length	waterline height	waterline diameter	Height	screen diameter	filter length	filter aperture	center distance of filter	weight	length
DN50	12.5	156	201	2	102	185	48	85	2	4	4.5	205
DN65	12	175	217	2	123	210	60	95	2	4	6.5	220
DN80	14	190	247	2	134	242	68	116	2	4	8	250
DN100	14.5	209	293.5	2	157	265	82	137	2	4	10.5	298
DN125	20	240									14	315
DN150	24	280	335				113	165	2	5	19	350
DN200	24	335	405								34	410
DN250	24	405	460								58	525
DN300	24	460	520								80	605
DN350	25	520	580								98	627
DN400	27	580									126	630
